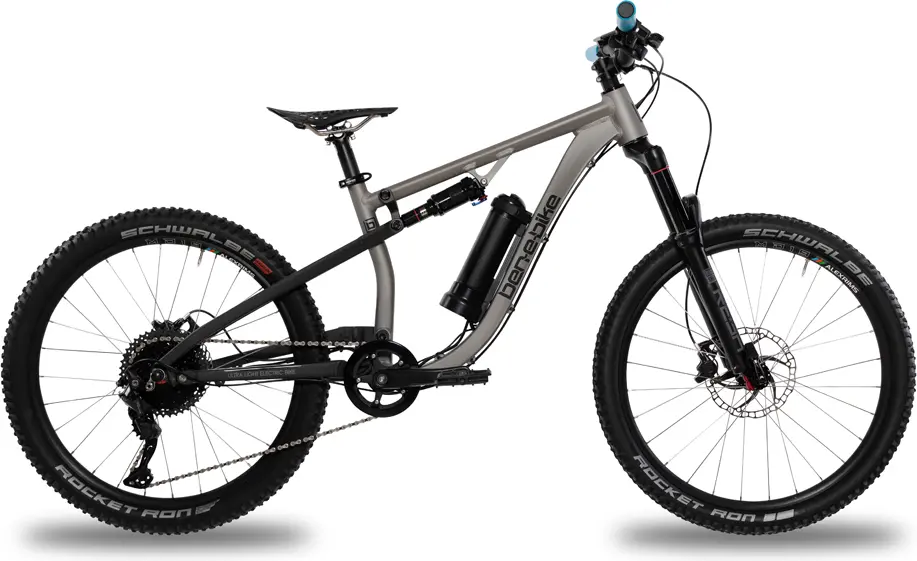

ben-e-bike Twentyfour-Six E-Power Fully

Gewicht-Icon
WEIGHT

Weight without pedals: 15,3 kg (250Wh battery) 15,9 kg (375Wh battery)
Rahmen-Icon
FRAME / FORK

24/26 inch frame AL6061 Hydroforming 386mm seat tube length
RockShox Reba, 120mm travel without LockOut and adjustable pressure and rebound damping
RockShox Monarch RL Rear shock, 110mm travel
Antrieb-Icon
DRIVE

Crank set 152mm, forged chainring 32Z narrow-wide
Neco bottom bracket with carbon housing and hollow-drilled CrMo axle
BEB Alu Flat pedals
Sunrace cassette CSMX3 with aluminum spider, 11 - 42 teeth
Rear derailleur Shimano RDM5120 10-speed
Shifter 10-speed RapidFire
Chain KMC X10-93,
Batterie-Icon
E-COMPONENTS

Brushless DC hub motor with 30 Nm maximum torque
BEB Sine Wave Controller, freely configurable via PC software via USB
TFT color display with 5 support levels
Optional 250 / 375 Wh battery with 4-pole plug-in base
Rad-Icon
WHEELS

Rims SDR light, either 24 or 26 inches
Front hub BEB Superlight with 15mm thru axle
Sapim Race spokes
Tires Schwalbe ROCKET RON Evolution LiteSkin 24 x 2.35 or 26 x 2.35
Bremse-Icon
BRAKES

hydraulic disc brakes BEB with cild lever
rotors 180 mm front / 180 mm rear
Cockpit-Icon
COCKPIT

Handlebar BEB full carbon 3K, 640 mm width, 31.8 mm diameter
Stem BEB Superlight 40 mm with 31.8 mm clamping
Spacer full carbon
Headset BEB Superlight semi-integrated
SLR handles, breathable
Sattel-Icon
SADDLE

Saddle BEB Race Superlight
Seat post BEB Carbon 31.6 mm, 250 mm long
or Dropper Post 80mm
Seat clamp BEB Superlight 31.8 mm
Geometry

Technische Zeichnung des twenty E-power
recommended from a height of 140 cm
or inner leg length of 67 cm;
usable up to 165 cm tall.

a Seat tube length
380 mm
b Top tube length horizontal
560 mm
c Standover
> 660 mm
d Seat angle
74°
e Head tube angle
65°
f Chainstays
422 mm
g Wheelbase
1131 mm
h Head tube length
100 mm
i Bottom Bracket
10 mm

Maximum rider weight
70 kg
