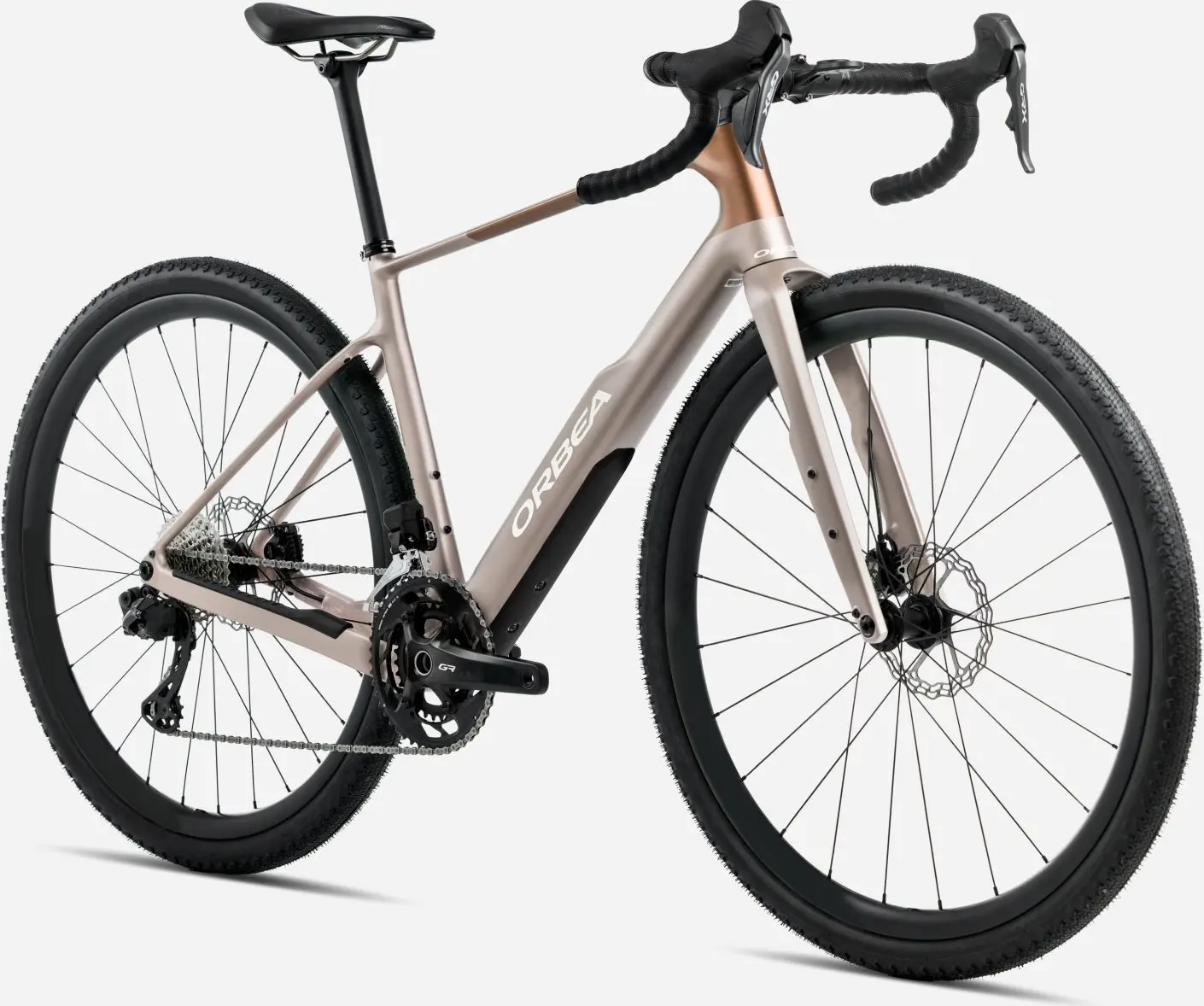

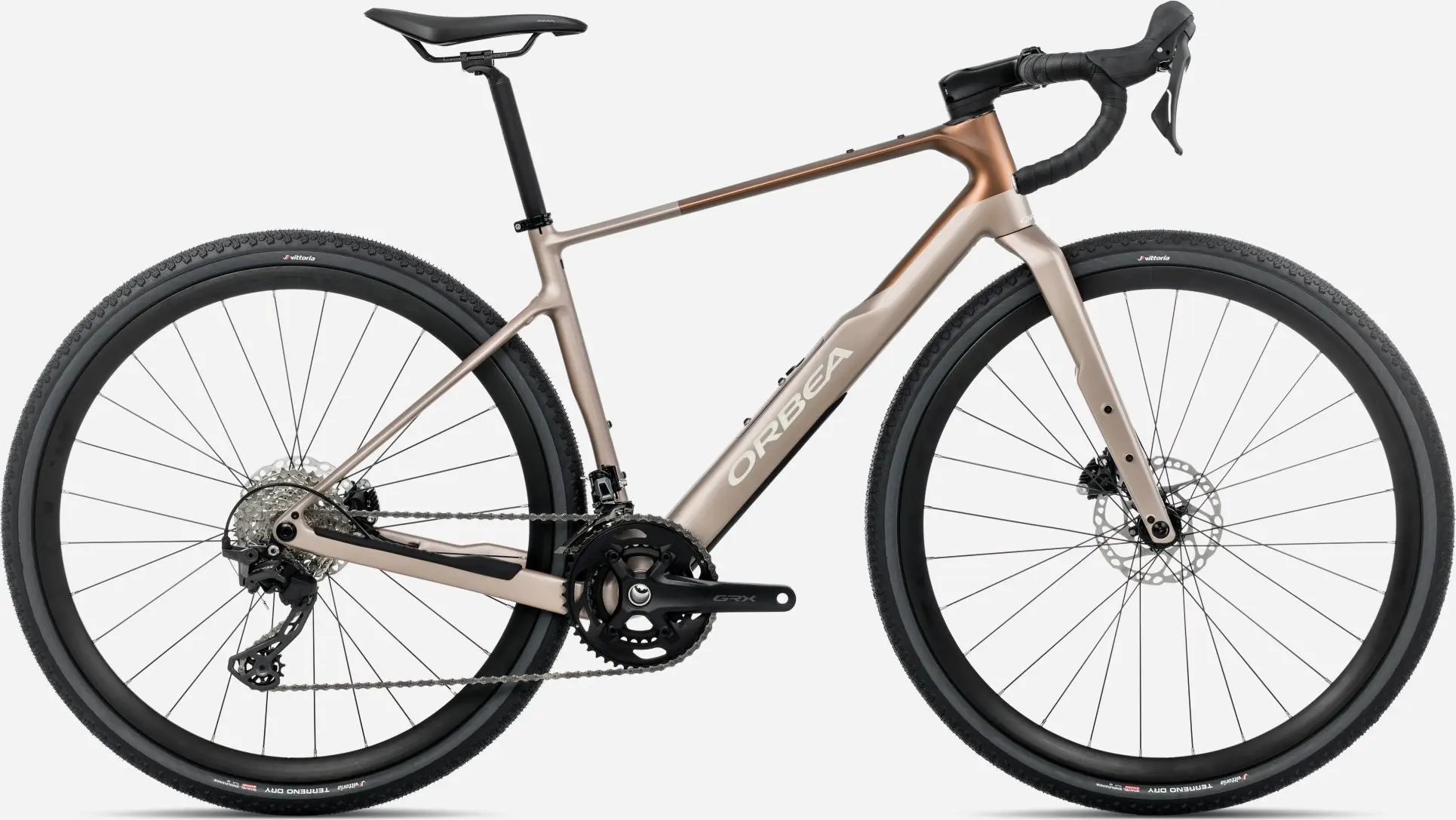

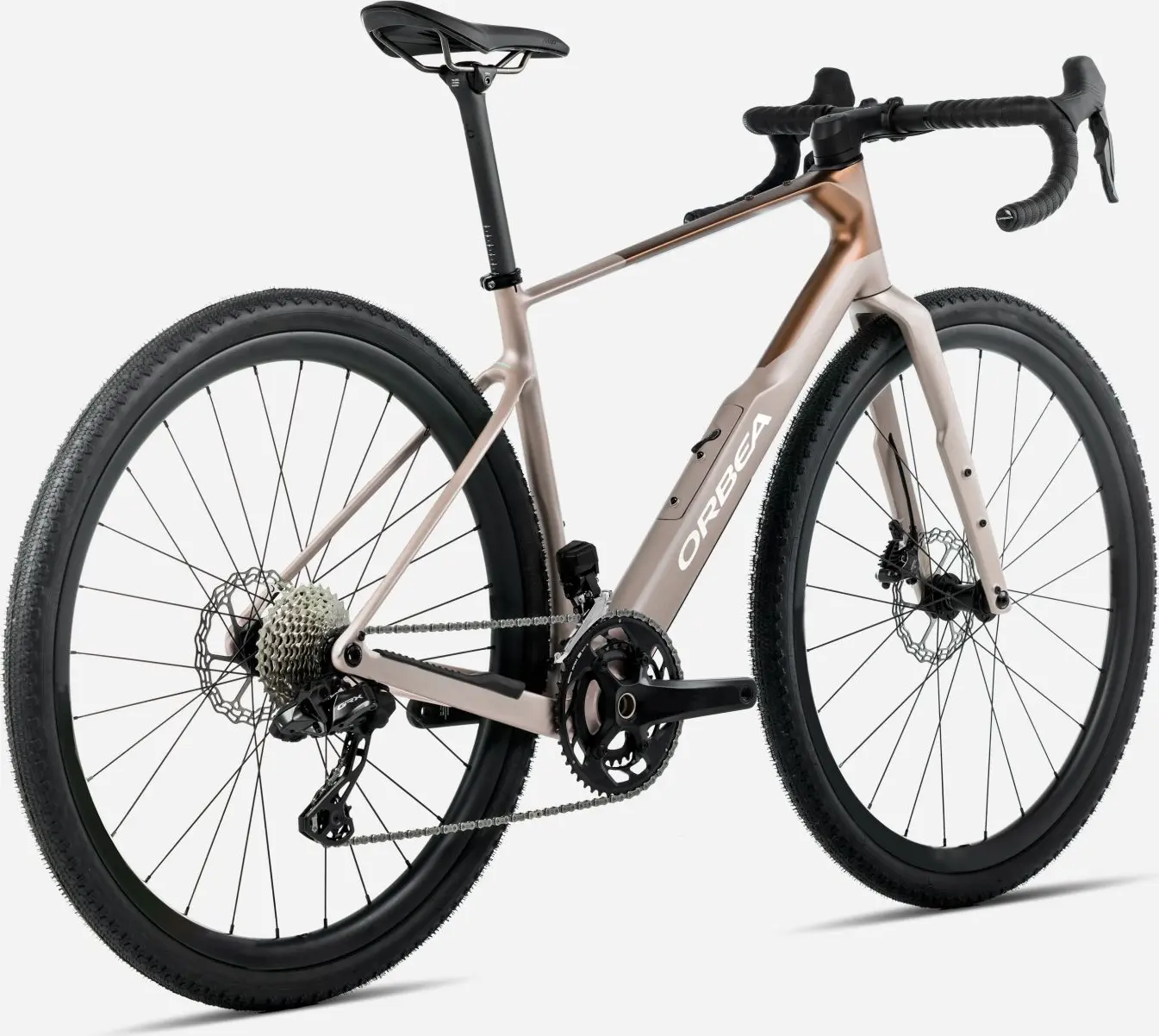

Orbea TERRA M30TEAM 2026

RAHMENSET
RAHMEN
Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", BB386EVO, powermeter compatible, Thru Axle 12x142mm rear, thread M12xP1, UDH dropout, LOCKR XXL service box, MMS munti mount system, fender ready.

GABEL
Orbea Terra Race ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1, MMS multi mount system, fender ready.

STEUERSATZ
FSA 1-1/2" Integrated Aluminium Cup

ÜBERSETZUNG
KURBEL
Shimano GRX RX610 30x46t

HEBEL
Shimano GRX RX610

KASSETTE
Shimano HG710 11-36t 12-Speed

SCHALTWERK
Shimano GRX RX820

UMWERFER
Shimano GRX RX820

KETTE
Shimano M6100

COCKPIT
LENKER
OC Gravel GR31, Reach 70, Drop 110

VORBAU
OC Road Performance RP23, -5º

BREMSEN
BREMSEN
Shimano RX410 Hydraulic disc

N/A

LAUFRÄDER
LAUFRADSATZ
Alloy, Tubeless, 700c, 21c

REIFEN
Vittoria Terreno T30 fine loose Gravel Endurance G2.0 700x45c

VORDERRADACHSE
Orbea Thru Axle 12x100mm M12xP1 Hollow

REAR HUB
Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded

KOMPONENTEN
SATTELSTÜTZE
SP 0.2 Carbon, 27.2mm, Setback 20

SATTEL
Fizik Terra Argo X7 Aluminium Rail 150mm

ZUBEHÖR
SCHUTZBLECH
N/A

LENKERBAND
Orbea Anti-Slippery/Shock Proof

LAGERUNG
Accesories Containers




XS
S
M
L
XL
XXL
1
SITZROHRLÄNGE (C-T)
410
440
470
505
540
575
2
OBERROHR
535
547
561
573
585
596
3
STEUERROHR
110
132,5
153,5
175
198
218
4
KETTENSTREBE
430
430
430
430
430
430
5
HÖHENUNTERSCHIED ZUR PEDALACHSE
80
80
80
80
80
80
6
HÖHE TRETLAGER
261
261
261
261
261
261
7
ACHSABSTAND
1031
1041
1052
1061
1072
1081
8
LENKWINKEL
69
69,5
70
70,5
70,8
71
9
SITZWINKEL
74º
74º
74º
74º
74º
74º
10
RAKE
45
45
45
45
45
45
11
ÜBERSTANDSHÖHE
690
717
743
772
801
828
12
REACH
386
392
400
406
412
417
13
STACK
535
558
580
602
625
645
14
GABELLÄNGE
395
395
395
395
395
395
15
TRAIL
82,7
79,5
76,2
73
71,4
69,8



LENKER
OC GRAVEL GR31, REACH 70, DROP 110
VORBAU
OC ROAD PERFORMANCE RP23, -5º
LAUFRADSATZ
ALLOY, TUBELESS, 700C, 21C
SCHUTZBLECH
N/A
