Rahmen Alpha Platinum Aluminium, internes Staufach, konisches Steuerrohr, Knock Block 2.0, interne Control Freak Zugführung, Unterrohrschutz, Shuttle-Guard, Gewindeinnenlager, ISCG 05, 34,9 mm Sitzrohr, Magnesiumumlenkhebel, Mino Link, ABP, Boost148, 160 mm Federweg
Gabel RockShox Yari RC, DebonAir-Feder, Motion Control RC-Dämpfung, konischer Gabelschaft, 42 mm Vorbiegung, Boost110, 15 mm Maxle Stealth-Achse, 170 mm Federweg
Dämpfer RockShox Deluxe Select+ RT, 230 x 62,5 mm
Max. kompatibler Gabelfederweg 180mm (596mm Achse bis Gabelkrone)
Vorderrad Bontrager Line Comp 30, Tubeless Ready, 6-Loch-Scheibenaufnahme, Boost110, 15 mm Steckachse, 29"
Hinterrad Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-Loch-Scheibenaufnahme, Boost148, 12 mm Steckachse, 29"
HR-Schnellspanner Bontrager Switch Steckachse, abnehmbarer Hebel
Reifen Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength-Karkasse, Aramidwulstkern, 60 TPI, 29 x 2.50
Max. Reifengröße Rahmen: 29 x 2.50", Gabel: Zum Hersteller
Schalthebel Shimano SLX M7100, 12fach
Schaltwerk Shimano XT M8100, langer Käfig

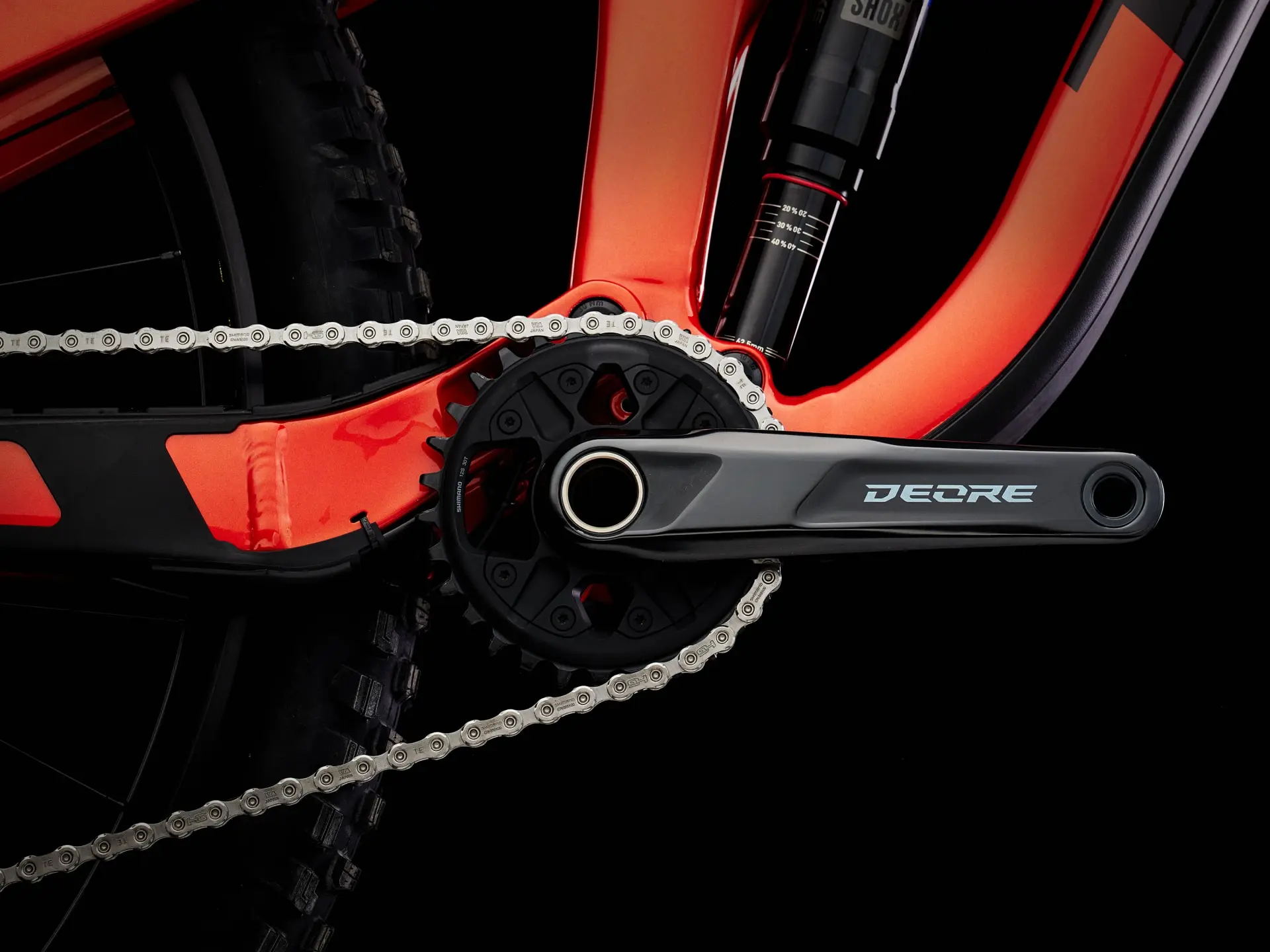

Kurbel Shimano Deore M6120, 30 Z, 55 mm Kettenlinie, 170 mm Kurbelarmlänge
Tretlager Shimano BB-MT501, BSA-Gewinde
Kassette Shimano Deore M6100, 10-51 Z., 12fach
Kette Shimano Deore M6100, 12fach
Max. Kettenblattgröße 1x: 34 Zähne, min. 28 Zähne
Sattel Bontrager Arvada, Streben aus CrMo-Rohr, 138 mm Breite
*Sattelstütze Größe: S TranzX JD-YSI-22PLQ, 100 mm Hub, interne Zugführung, 34,9 mm, 346 mm Länge;Größe: M , ML TranzX JD-YSI-22PLQ, 150 mm Hub, interne Zugführung, 34,9 mm, 454 mm Länge;Größe: L , XL TranzX JD-YSI-22PLQ, 170 mm Hub, interne Zugführung, 34,9 mm, 497 mm Länge
Lenker Bontrager Line, Aluminium, 35 mm, 27,5 mm Rise, 820 mm Breite
Griffe Bontrager XR Trail Elite, Nylonklemme
Vorbau Bontrager Elite, 35 mm, 0 Grad, 35 mm Länge
*Bremse Größe: S , M , ML , L , XL Hydraulische 4-Kolben-Scheibenbremse SRAM DB 8;Größe: S , M , ML , L , XL SRAM DB 8 4-piston hydraulic disc
*Bremsscheibe Größe: S , M , ML , L , XL SRAM CenterLine, 6-Loch-Scheibenaufnahme, abgerundete Kante, 180 mm;Größe: S , M , ML , L , XL SRAM CenterLine, 6-Loch-Scheibenaufnahme, abgerundete Kante, 200 mm
Bremsscheibendurchmesser Max. Bremsscheibendurchmesser - Rahmen: 220mm, Gabel: siehe Gabelhersteller
Gewicht M - 15,50 kg / 34,18 lbs
Max. Gewicht Dieses Fahrrad hat eine maximale Gewichtsbeschränkung (Fahrrad, Fahrer und Beladung) von 136 kg.
Fahrwerkskalkulator
Komplettes Tubeless-System
Knock Block
Oversized-Vario-Sattelstütze 34,9 mm
Geschraubtes Tretlager
